SJ-8011 Pure White Aluminum Composite Panel
- Tel:+86-577-62999101
- Fax:+86-577-62999102
- Email:[email protected] [email protected]
- Whatsapp:+86-18019085530
|
Raw materials Base material: High-strength aluminum alloy sheet Core: Non-toxic low-density polyethylene (LDPE) core Surface: Polyester coating |
 |
Specification
|
Width |
1220mm, 1250mm, 1500mm |
|
Length |
Any size, we recommend 2440 mm, 3050 mm, 4050 mm |
|
Panel thickness |
2mm~ 6mm, recommend 3mm |
|
Aluminum skin thickness |
0.10mm~0.50mm, recommend 0.15mm,0.21mm,0.30mm |
|
Standard size |
1220mm x 2440mm (4' x 8'); 1500mm x 3050mm (5' x 10') |
|

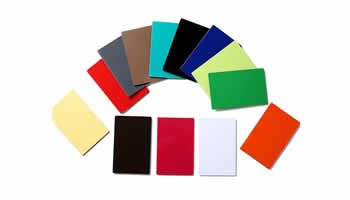

Colors |
45 standard factory colors for reference |
|
Others |
Custom sizes and colors are also accepted. |
Dimensional tolerances
|
Thickness |
±0.20 mm |
|
Aluminum thickness |
±0.02 mm |
|
Width |
±2.0 mm |
|
Length |
±3.0 mm |
|
Diagonal |
±5.0 mm |
|
Thermal expansion |
2.40 mm/m@100℃ Expansión térmica |
Surface properties
|
Pencil hardness |
> HB |
|
Temperature resistance |
-40℃~80℃ |
|
Impact force |
50 kg cm2 |
|
Boiling water resistance |
Boil for 2 hours without changing |
|
Acid resistance |
Immerse the surface in 5% HCl for 24 hours without change. |
|
Alkali resistance |
Immerse the surface in 5% NaOH for 24 hours without change |
|
Oil resistance |
Submerge the surface in 20# motor oil for 24 hours without changing |
|
Solvent resistance |
Cleaned 100 times with methylbenzene without change |
|
Cleaning resistance |
>1000 times without change |
|
Peel resistance 180° |
>5 N/mm |
|
Cold resistance |
-40℃ |
Advantages
Easy maintenance
Easy processing
Lightweight
Colorful design
Non-toxic and safe
Excellent coating properties
Applications
1. Advertising: Signs and billboards, UV digital printing. It is easy to process and can be applied to all shapes. Polyester-coated ACP for outdoor use, 5-year warranty. Recommended panel thickness: 3 mm, aluminum skin thickness: 0.21 mm or 0.15 mm.
2. Decoration: Facade and interior wall decoration: Polyester-coated ACP for indoor use, 10-year warranty. Products with a full range of colors available. Recommended panel thickness: 3 mm, aluminum skin thickness: 0.21 mm or 0.30 mm.
-
